Hitachi SuperH™ series Alpha Board
AP-SH2F-4A ¥ 7,800 (Tax not included.)

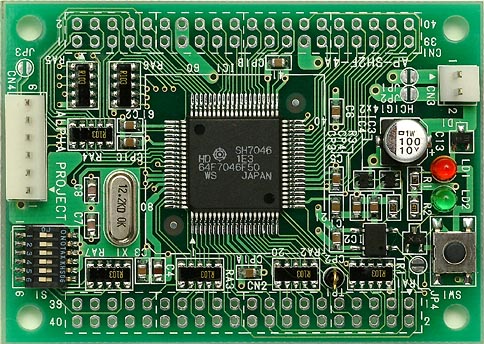

AP-SH2F-4A is board computer with Hitachi SH-2 Processor SH7046F. Wide range of usage purpose such as various prototype manufacture or application to the small lot product is possible, because all necessary signals for external expansion are extracted to the connector for external connection.	Click to enlarge.

	Sample programs such as start-up and timer interruption, etc. are included in ths package.
	FlashWriter is applicable as a development tool.

Features

	Operation frequency 49.152 (12.288 MHz quarts crystal units are used.)
	256 Kbyte internal FROM.
	System expansion is easy because all CPU BUS output is to the connector.
	Extra compact substrate (70 mm x 50 mm)
	F-ZTAT writing software for SH7046 included (FlashWriter for SH7046F)

Specification

CPU	SH7046F
ROM	Internal flash ROM 256 Kbyte
RAM	Internal RAM 12 Kbyte
Clock	49.152 MHz (12.288 MHz quarts crystal units are used.)
Serial I/F	Asynchronous/Synchronous IF 2 channels SCI3 is attached to connector for communication.
Parallel I/O	54 (Multiple purpose port included.)
Timer/Counter	16 bit multiple function timer 5 channels 16 bit comparison match timer 2 channels 8 bit watch dog timer Motor management timer
Interruption	Interruption controller incorporated External part: 5 (NMI,IRQ3~IRQ0)
A/D converter	12 channels (Resolution 10 bits)
Reset	Dedicated use reset IC and reset switch are installed. Reset from the external expansion connector (not packaged) is possible.
External connection	40 PIN connector x 2 (2.54mm pitch) * Not packaged 6 PIN connector (For serial communication.) 2 PIN connector (Power source)
Power source voltage	DC5V ± 10% MAX 250mA
Substrate size	70 x 50 (mm)
Accessories	Operation manual, sample program, flash writing software, power source harness

Material

Block diagram (under preparation)

Note : PC-RS-03 or PC-USB-01 is necessary for incorporated flash writing. The connector between ROM and substrate is not included. No clean flux is used to manufacture electronic substrates.
