SH Processor F-ZTAT Writing Software
FlashWriter PRO2 ¥ 20,000 (Tax not included)

The FlashWriter PRO2 is software for writing in the embedded flash of SH Processor that can be used with F-ZTAT. It can be used with SH701xF, SH704xF, SH705xF and SH706xF series. It is also applicable for automatic baud rate setting, boot writing and transmission up to 115.2Kbps, and the writing speed is high.

New features of the FlashWriter PRO2

Download the evaluation version

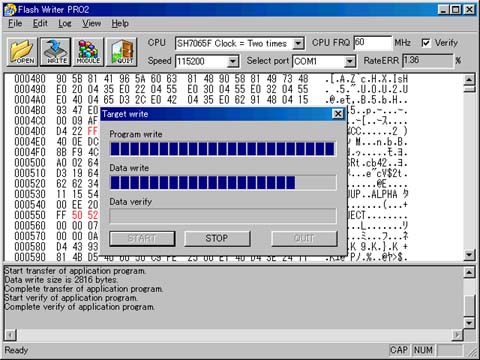

Click to enlarge

New ideas for upgrading the products embedded into the SH Processor!!
Loyalty free writing module creation function and solid edit function are adopted.

Features

	Writing module creation
	Data editing
	No special hardware required
	Automatic baud rate setting function
	For use with Japanese/English versions of Windows95/98/Me/NT4.0/2000/XP
	Responding to boot writing
	Easy to upgrade, software-only product

Operation environment

Host computer
Personal computer	PC/AT convertible machine
OS	For use with Japanese/English versions of Windows95/98/Me/NT4.0/2000/XP
Serial port	One port is to be used (One of COM1 to 8)
Media	1.44M FD

Target
Target CPU	SH7017F,SH7044F,SH7045F,SH7046F,SH7047F,SH7050F, SH7051F,SH7052F,SH7053F,SH7054F,SH7055F,SH7065F (* 1)
SCI	Should be connected with SCI (* 2) and RS232.
Mode setting	Setting to boot writing mode should be possible.
Communication speed	4800~115200 bps
Writing speed	Max. 4.5 Kbyte/sec (at 115.2 Kbps) (Writing speed varies with CPU types, operation frequency and communication speed.)
Responding file type	Motorola S format file (* 3), BIN file
* 1: CPU applications will increase in the future. * 2: SCI channel responding to boot writing * 3: Cannot save in the Motorola S-format file.

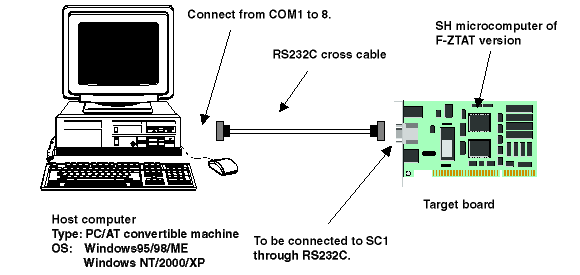

Example of connection
