Hitachi SuperH™ series Alpha Board
AP-SH2F-2A ¥
15,000 (Tax not included.) |

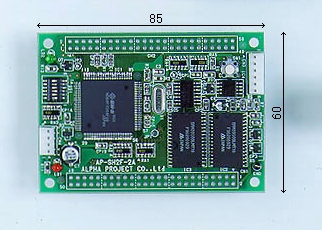

AP-SH2F-2A is board computer with Hitachi SH-2
Processor SH7044F.
Wide range of usage purpose such as various prototype manufacture or application
to the small lot product is possible, because all necessary signals for
external expansion are extracted to the connector for external connection. |
|
   |
 |
Sample programs such as start-up and timer
interruption, etc. are included in this package. |
|
FlashWriter is applicable for
development tools. |
Specification
| CPU |
SH7044F |
| ROM |
ROM Incorporated flash ROM 256 Kbyte (32 bit width)
|
| RAM |
SRAM 256 Kbyte (16 bit width) |
| Clock |
Maximum 24.576 MHz (6.144 MHz crystal) |
| Power source voltage |
DC5V ± 5% |
| Electrical consumption |
200 mA / MAX |
| Substrate size |
60 x 85 (mm) 4 layer substrate |
| Accessories |
Operation manual, circuit drawing, power cable, sample
program and Flash writing software |
|
Note : PC-RS-03 is necessary for incorporated flash writing.
A substrate connector is not attached. No clean flux is used to manufacture
electronic substrates.
|
Block
diagram
